Rendering google style pie chart in your rails app

5 Mar 2009, by Michael Cindrić

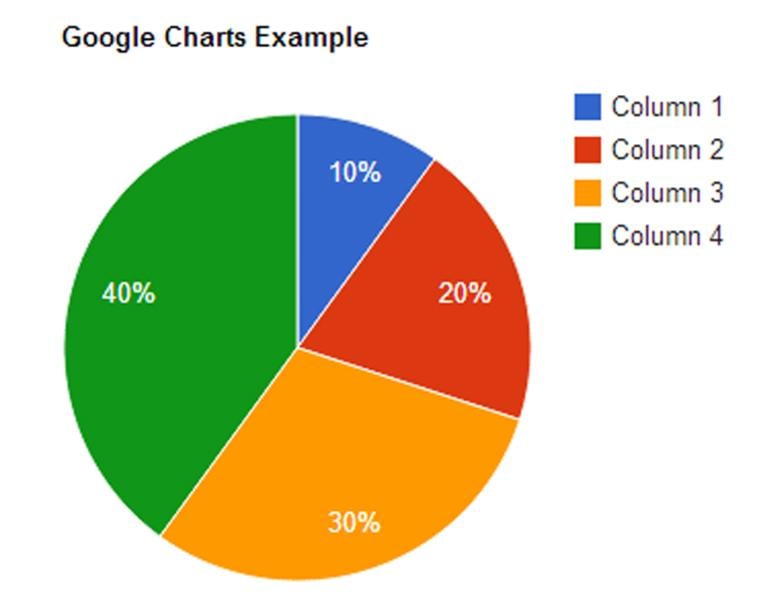

Hero image pie chart

Google has some of the best charts on the web. If you ever wanted to have cool pie charts like google here is a simple way to do it. Simply add the following to your application_helper.rb file.

  def google_pie_chart(data, options = {})
    options[:width] ||= 250
    options[:height] ||= 100
    options[:colors] = %w(0DB2AC F5DD7E FC8D4D FC694D FABA32 704948 968144 C08FBC ADD97E)
    dt = "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789-."
    options[:divisor] ||= 1

    while (data.map { |k,v| v }.max / options[:divisor] >= 4096) do
      options[:divisor] *= 10
    end

    opts = {
      :cht => "p",
      :chd => "e:#{data.map{|k,v|v=v/options[:divisor];dt[v/64..v/64]+dt[v%64..v%64]}}",
      :chl => "#{data.map { |k,v| CGI::escape(k + " (#{v})")}.join('|')}",
      :chs => "#{options[:width]}x#{options[:height]}",
      :chco => options[:colors].slice(0, data.length).join(',')
    }

    image_tag("http://chart.apis.google.com/chart?#{opts.map{|k,v|"#{k}=#{v}"}.join('&')}")
  rescue
  end

Once you have that in then in your view its as simple as below to render a nice pie chart. Go ahead have a piece.


 <%=  google_pie_chart([["Rails",80],[".Net",10],["Java",10]) %>
